GENERAL SPECIFICATIONS
Material:
Resin- Isophthalic unsaturated polyester resin specification
Fiber Glass- Low alkali fibre glass conforming to JIS R3411 to R3417 or BS 33396, BS 3496 and BS 3749 specifications
Manufacturing Process:
External Reinforcement-
(1) Standard: SS 304 Tie-Rod or Cleat Angle Stay
(2) Optional: SS 316 Tie-Rod pr Cleat Angle Stay
Optional: Metal-Free internal with special design
External Support For Non-partitioned Tanks:
Roof Support: PVC Vertical Poles and GRP roof panel stiffener
Sealant:
Non toxic PVC foam
Bolt, Nuts, Washers:
External - Standard : Hot Dipped Galvanised Steel
Optional : SS 304/A2 or SS 316/A4
Internal – Standard : SS 304/A2
Optional : SS 316/A4
Ladder :
External – Standard : Hot Dipped Galvanised Steel
Internal – Standard : PVC
Optional : GRP or 316
Water Level Indicator :
Standard Reversed Reading Mechanical Ball Float Type with Mouse
Optional : Direct Reading Clear Tube Type

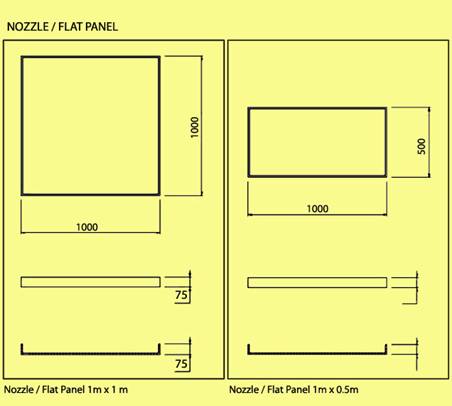

Nozzle Panel :
Flat panels will be provided for any type of piping materials
The HOT PRESSED (SMC) SHEET MOULDING COMPOUND method is employed to produce the GRP panels in order to ensure dimensional accuracy and consistent mechanical properties. Products produced by this method are used worldwide in a multiplicity of structural and engineering applications.
· GRP SECTIONAL WATER TANK
Performance of Panels
|
Properties |
SUCCESS GRP / FRP
Tank Panel Performance |
Acceptance Criteria
(SS 245:1995 Specification) |
|
Tensile Strength (Mpa) |
98.8 |
>70 |
|
Tensile Modulus (Gpa) |
13.8 |
- |
|
Flexural Strength (Mpa) |
158.8 |
>100 |
|
Flexural Modulus (Gpa) |
12.8 |
- |
|
Hardness (Barcol) |
52 |
>30 |
|
Glass Content (%) |
33 |
>25 |
|
Water Absorption (%) |
0.05 |
<1.0 |
|
Thermal Conductivity (W/m°C) |
0.18 |
- |
|
Tank height |
Main beam |
Sub beam |
Concrete plinth distance |
|
1.0m |
not provided |
not provided |
1000mm c/c |
|
1.5m |
C-channel 100mm x 50mm |
Angle 65mm x 65mm |
1000mm c/c |
|
2.0m |
C-channel 100mm x 50mm |
Angle 65mm x 65mm |
1000mm c/c |
|
2.5m |
C-channel 125mm x 65mm |
Angle 65mm x 65mm |
1000mm c/c |
|
3.0m |
C-channel 125mm x 65mm |
Angle 75mm x 75mm |
1000mm c/c |
|
3.5m |
C-channel 150mm x 75mm |
Angle 75mm x 75mm |
1000mm c/c |
|
4.0m |
C-channel 150mm x 75mm |
Angle 75mm x 75mm |
1000mm c/c |
|
Note: *Success reserves the right to provide alternate skid base designs. SUCCESS recommends an ideal concrete plinth size of 300mm (W) x 600mm (H), with maximum variance in height of not more than 3mm.
|

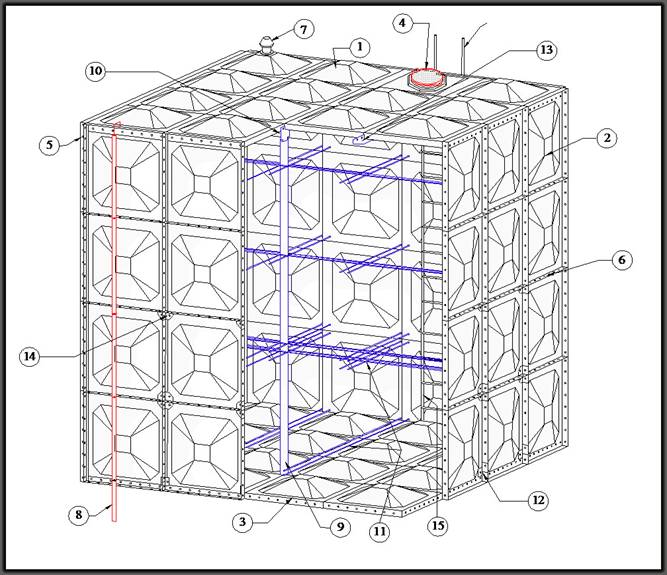

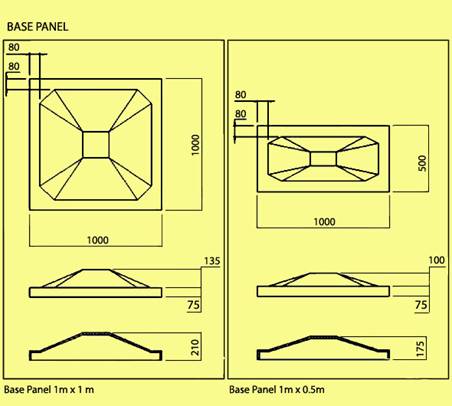

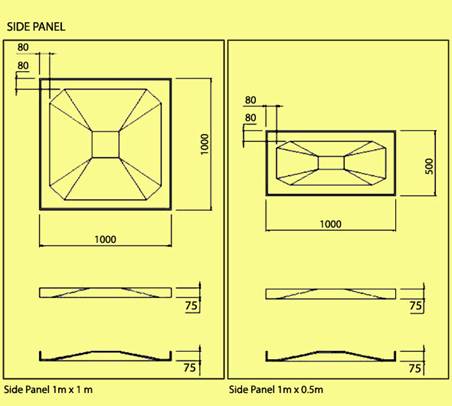

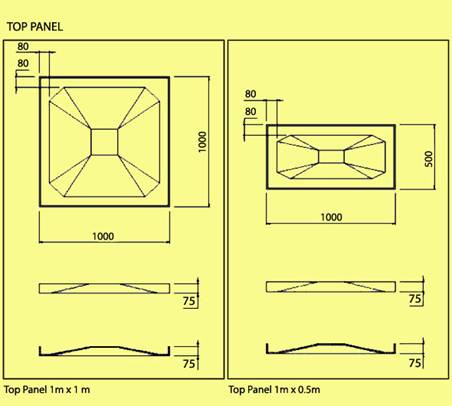

Main component |
Externel structural support |
Internal structural support |
Tank accessories |
|
Top panel (1) |
Body angle (6) |
Pole (9) |
Access manhole (4) |
|
Side panel (2) |
Cornel angel (5) |
Pole support (10) |
Air vent (7) |
|
Bottom panel (3) |
Tie-rod bracket (12) |
Tie-rod (11) |
Water level indicator (8) |
|
|
Side panel support (14) |
Roof support (13) |
Internel ladder (15) |
|
|
|
|
External ladder (16)
|
|
